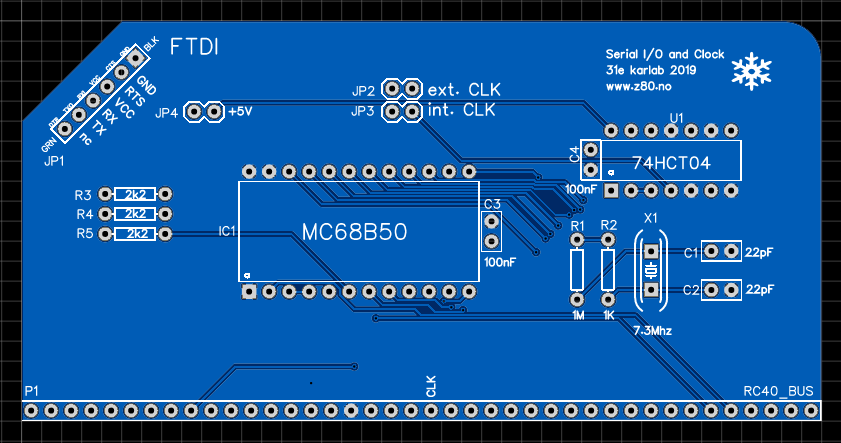

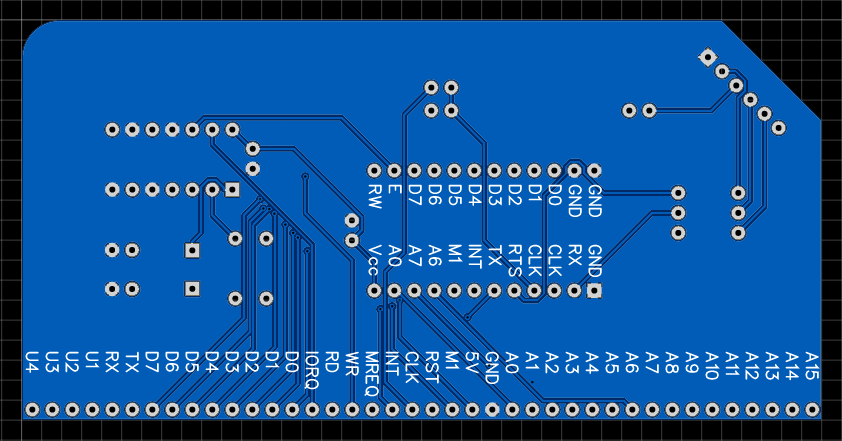

#31e Serial + Clock Module
Description
- MC68B50 ACIA
- Crystal, recommended 7.3728Mhz
- 51 x 102 mm
- RC40 bus connector
Components
- PCB - 31e
- DIP-24 socket
- MC68B50 ACIA
- DIP-14 socket
- 74HCT04N
- Crystal, recommended 7.3728Mhz
- 1M resistor
- 1K resistor
- 2.2k resistors (3x)
- 100nF capacitors (2x)
- 22pF capacitors (2x)
- 6pin angled male adaptor (FTDI)
- pins and jumpers
- 1x40 pin angled male connector
