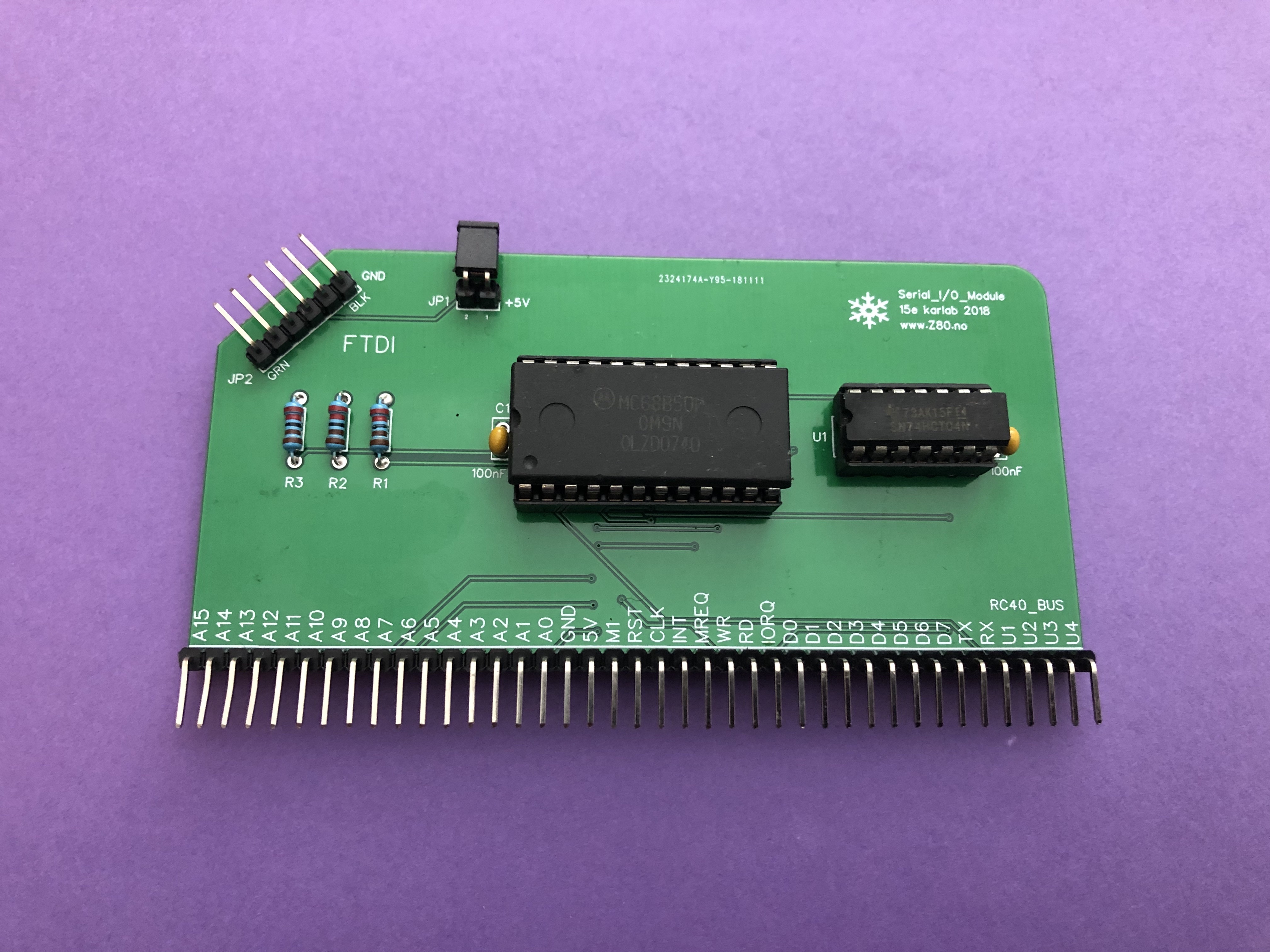

#15e Serial I/O Module

Description

  • Serial I/O
  • MC68B50 ACIA
  • 74HCT04N
  • 51 x 102 mm
  • 40 pin bus connector
  • FTDI connector

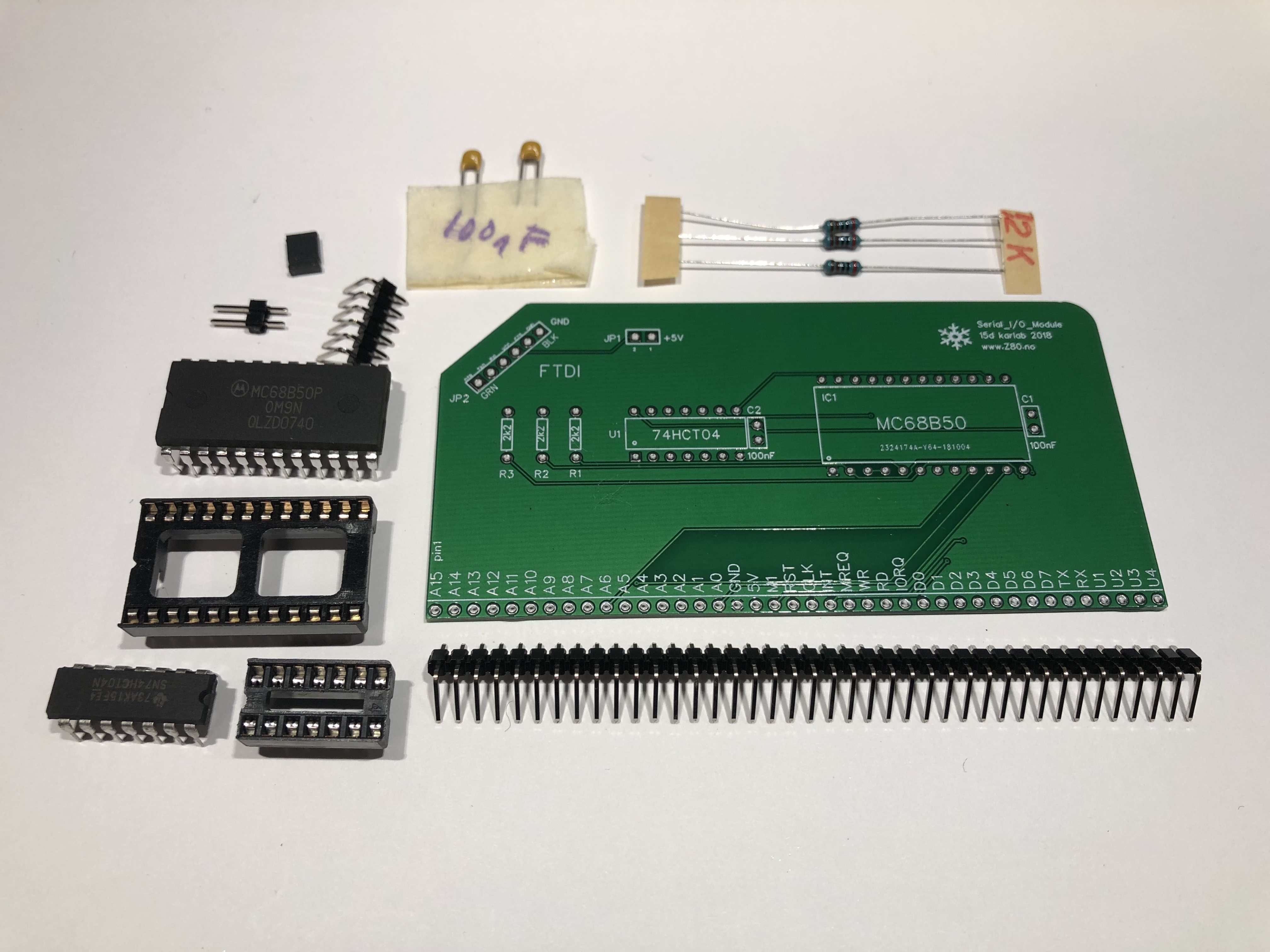

Components

  • PCB - 15e
  • DIP-24socket
  • MC68B50
  • DIP-14 socket
  • 74HCT04
  • Resistor 2.2K (3x)
  • 6pin angled male connector
  • 2pin male connector
  • jumper
  • 40pin angled male connector
  • Capacitor 100nF (2x)

My Image
My Image
My Image
