Z80 bits
... returning to 80's computing

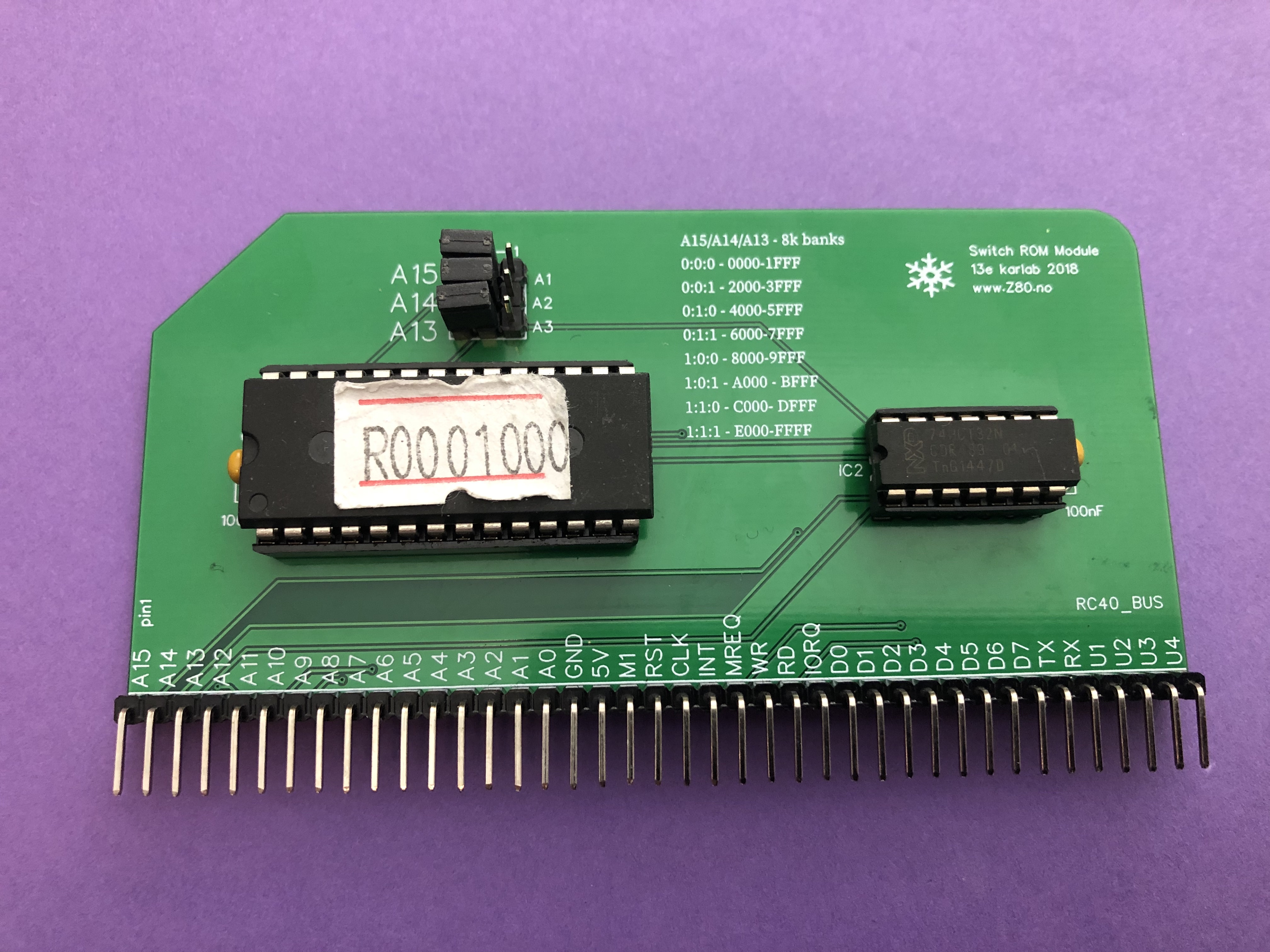

#13e ROM Module
Description
- Read Only Memory, 8 - 64 kb ROM
- 8 banks x 8kb
- 74HCT32N
- 51 x 102 mm
- 40 pin bus connector

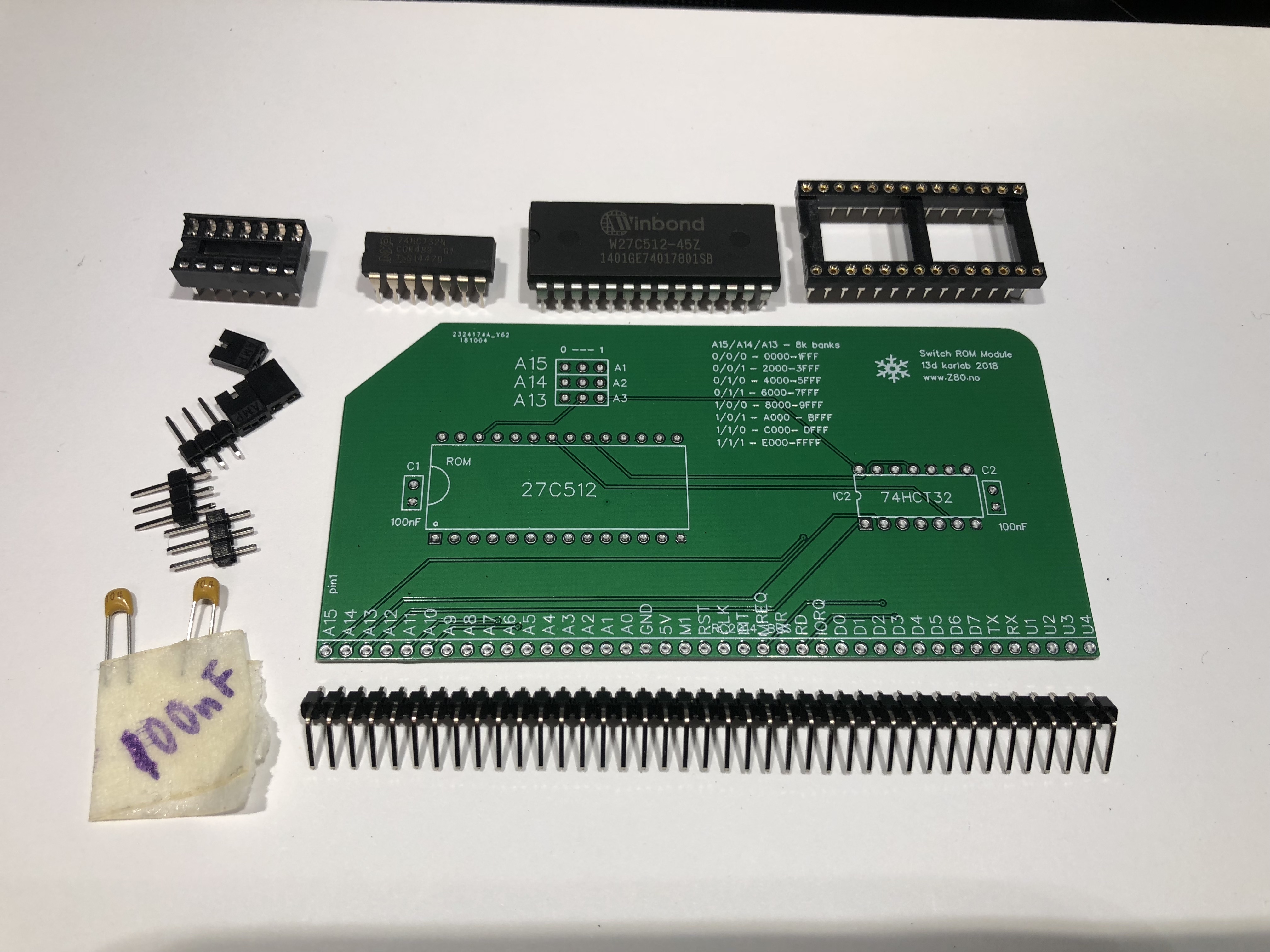

Components

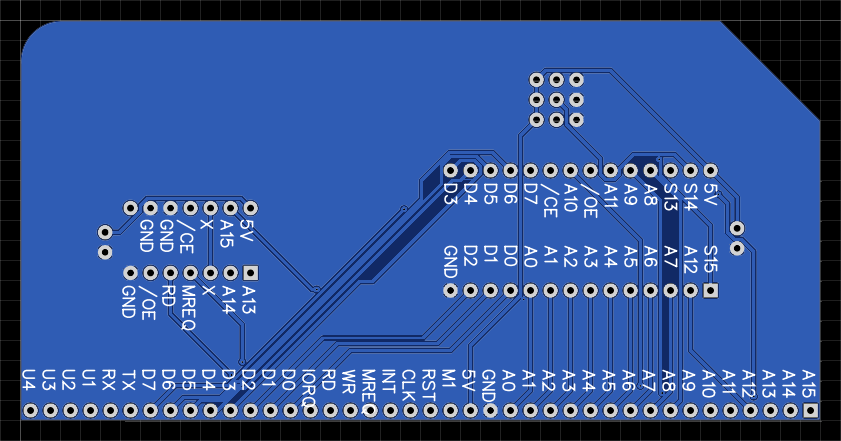

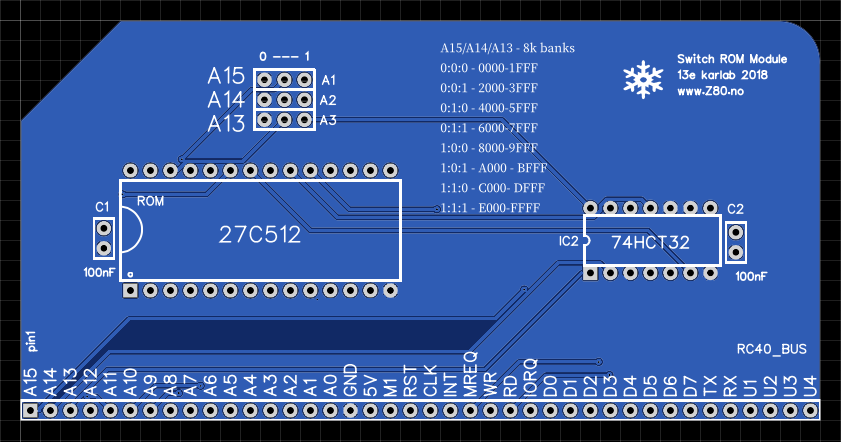

- PCB - 13e
- DIP-28 socket
- 32/64k ROM 27C512
- DIP-14 socket
- 74HCT32
- 40pin angled male connector
- 3pin male connector (3x)
- jumper (3x)
- Capacitor 100nF (2x)
